Xlg-240-m-ab 4 output wires

Indoor Growing Lighting
1

Hi All the utube videos the output has 2 wires mine has 4 on the output. Red Vo+ black Vo- and 2smaler ones Blue Dim+ White Dim-. The kit also contained a potentiometer which no video covered. I have the HLG260 XL V2 Rspec. TIA

2

Ok edit. 3 sets.

1 with 3 for power cord. Connected thru plastic connector

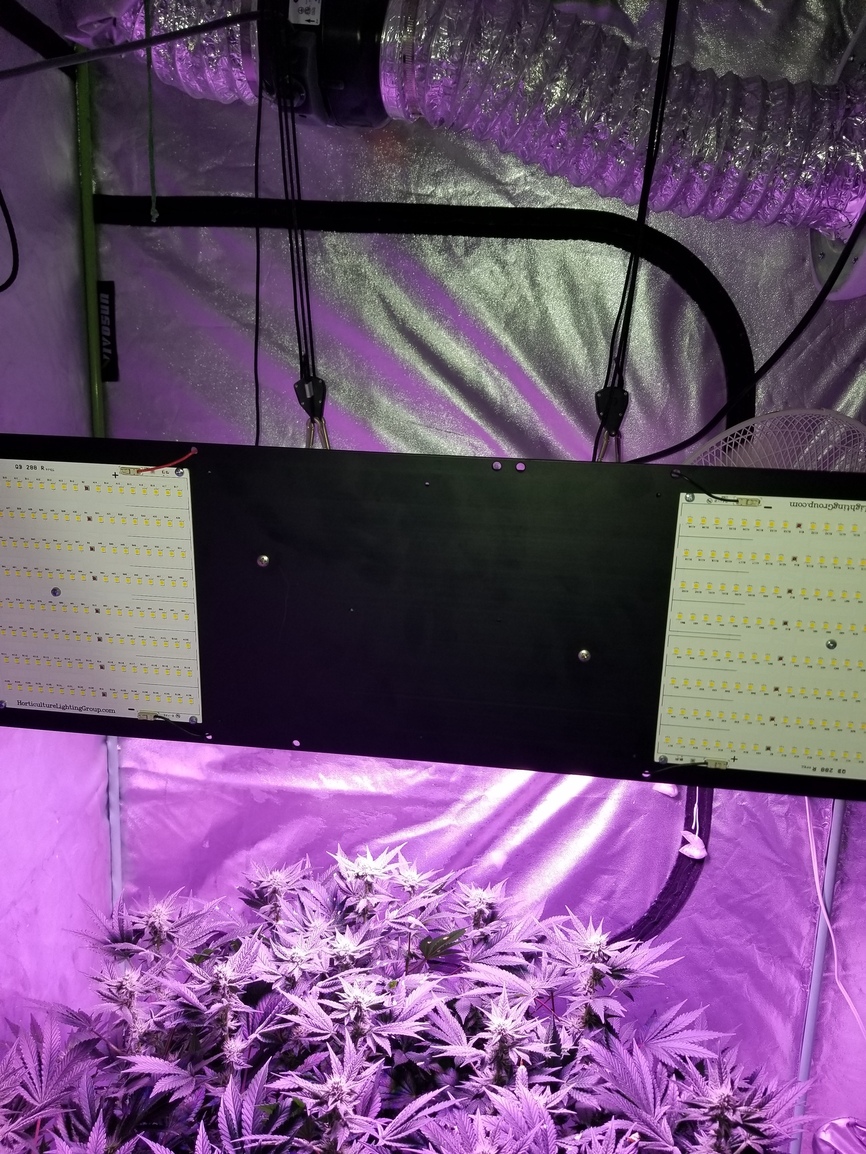

15882890491388851664195589051431
15882890491388851664195589051431866×1154 238 KB

The 2nd has the red and black. That’s power to boards.
Red to vo+ black to vo- each on a separate board. Top 2 wires in pic.

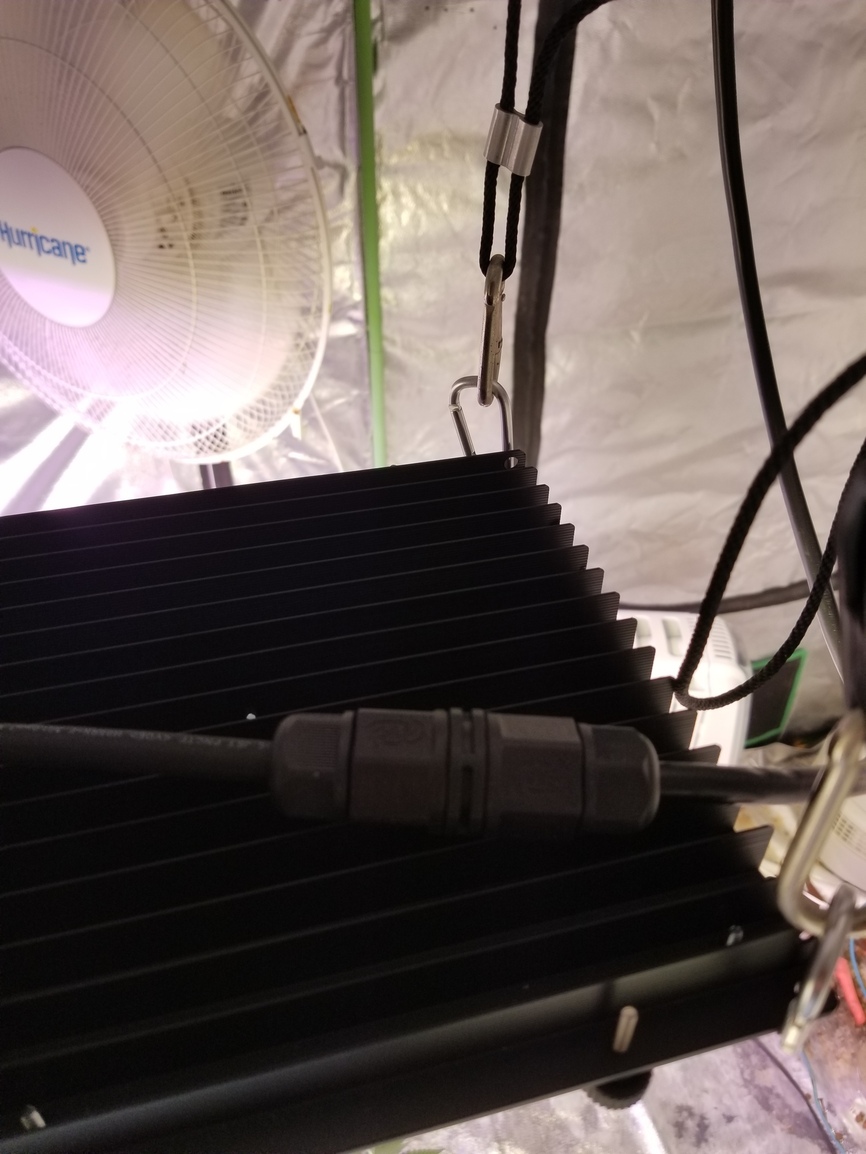

15882891807278498769990735144875
15882891807278498769990735144875866×1154 479 KB

The other 2 for potentiometer just connect to red and black on potentiometer

3

Wasn’t sure so thanks @BetrayedSoul working good now I gotta get some plants under them!!

4

@Bobo excellent to hear they are working. Also I had trouble as well because the videos they have are so fast and dont explain much.
